MicroPur® ultra-precision filtration system adopts the form of recoil filtration, which is used to separate impurities such as fine particles in oil or aqueous solution. It is widely used in the field of tool grinding of cemented carbide, high-speed steel and other materials. Whether it is a single machine or a complete production line, KNOLL can provide a suitable single set of filters or a centralized filtration system solution. No other filtering methods are needed, MicroPur® ultra-precision filtration system can directly recover valuable abrasive debris materials, and low power consumption, low maintenance costs.
Ultrafine filtration systems MicroPur® 120 and 240 / AK5


● Ultra-precision filtration of hard alloy, cast iron, high-speed steel and other materials.

● Fully automatic backflushing filtration, scraps can be collected.

● Refrigerator temperature control range ± 0.2 ° C.

● Filtration accuracy is less than 3um, particle concentration is less than 10mg / l.

● Filtration capacity 120–240 l / min.


Modular system MicroPur® 480M

● Modular filter unit.

● 3 filter units can be placed.

● Filtration capacity is greater than 480 l / min.

● Unilateral door opening is convenient for maintenance.

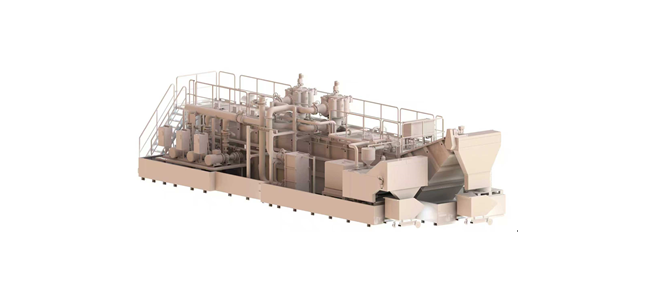

Centralized filtration system MicroPur® 480M-3 / AK50

● Cooling medium: oil

● Workpiece material: cemented carbide

● Application field: Tool grinding

● Number of machine tools: 15

● Maximum flow: 1200 l / min

● Other features: The system can be expanded to 2400 l / min

Centralized filtration system MicroPur® 480M-12 / AK100


● Cooling medium: oil

● Workpiece material: cemented carbide

● Application field: Tool grinding

● Number of machine tools: 40

● Maximum flow: 5700 l / min

● Other features: The system can be expanded to 7200 l / min

Centralized filtration system MicroPur® 480M-24 / AK50-2


● Cooling medium: oil

● Workpiece material: cemented carbide

● Application field: Tool grinding

● Number of machine tools: 120

● Maximum flow: 11000 l / min

● Other features: the system can be expanded to 15000 l / min
